Features

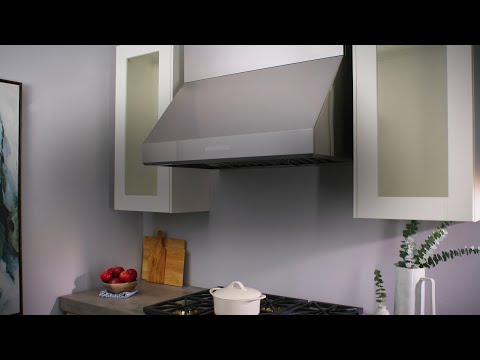

Designed for the ultimate pro-style kitchen, the Tidal II wall hood features optional dual 1300-CFM PowerWave™ blowers, Zephyr Connect capabilities and professional baffle filters. The next wave of the future, Tidal II is equipped with LumiLight LED Lighting and 6-Speed Proximity Touch Controls.
ACT™ CONTROL TECHNOLOGY*
ACT™ CONTROL TECHNOLOGY*
Airflow Control Technology (ACT) allows the installer to set the maximum fan CFM to align with local codes and regulations.
POWERWAVE™ 3-PHASE BLOWER TECHNOLOGY
Delivers best-in-class performance with unparalleled quiet operation. It provides more power while minimizing noise and improving efficiency.
ZEPHYR CONNECT APP
Zephyr Connect App allows you to control your range hood from anywhere using your mobile device. It includes real time diagnostics and provides important product information. All you need is a WiFi connection with access to the internet. It seamlessly integrates with your smart devices such as Amazon Alexa or Google Home smart speaker for voice activation. Available to download from Google Play or the App Store.
*Feature images may not reflect actual product.
Specifications
| General | |
|---|---|
| Series Name |
• Tidal II • Pro Collection |
| Blower Included | Yes |
| Airflow | 700 CFM |
| Style | Standard |
| Color | Stainless Steel |
| Manufacturer Color | Stainless Steel |
| Installation | Under-Cabinet |
| Features | |
| Wi-Fi | Yes |
| Technologies |
• Airflow Control Technology™ (ACT™) • PowerWave™ blower • LumiLight • Zephyr+ with Zephyr Connect App • Alexa and Google Home Compatible |
| Ducting Information |
• Vertical Single Internal Blower: 8" Round • Horizontal Single Internal Blower: 3-1/4" x 10" or 8" Round • Vertical Dual Internal Blower: 10" Round • Horizontal Dual Internal Blower: 10" Round |
| Speeds | 6 |
| Additional Information |
• Blower CFM (Min. - Max.): 200 - 700 • Sones (Min. - Max.): 0.8 - 6 • Optional Dual Blower (Min. - Max.): 300 - 1,300 • Controls: Proximity Touch • Auto Delay-Off • CleanAir Function • Lighting: LumiLight LED, 6W x2 • Tri-Level Lighting • Filters: Pro Baffle x2 • Recirculating Option |
| Electrical Information | |
| Information |
• AC POWER (Single Blower): 120V, 60Hz at Max. 5A • AC POWER (Dual Blower): 120V, 60Hz at Max. 9A |
| Accessories | |
| Optional |
• Wireless Remote Control: 14000005 • Recirculating Kit: ZRC-7000C • 12" Duct Cover: AK0720 • 24" Duct Cover: AK1720 • Make-Up Air Kit (Single Blower): MUA008A • Make-Up Air Kit (Dual Blower): MUA010A • Dual Internal Blower: PBD-1300B |
| Dimensions | |
| Class Width | 30" |
| Width | 29.94 inch(es) / 76.04 cm |
| Height | 18 inch(es) / 45.72 cm |
| Depth | 24 inch(es) / 60.96 cm |
| Additional Dimensions | Mounting Height Range: 24" - 36" |
| Warranty | |
| Warranty |
• 1-Year for labor • 3-Year for parts |
| UPC | |
| UPC# | 646328009211 |
| Content ID | 667074 |
